EAGLE INTERNATIONAL MANAGEMENT welcomes the opportunity to service your needs for textile machinery. Our world-wide contacts provide us the opportunity to buy and sell equipment for opening, carding, spinning, weaving, dyeing & finishing, and non-wovens, filament extrusion and texturizing.
We not only have the ability to provide you with an extensive inventory of equipment, we can also go to work for you in search of specific out-of-inventory machines. Our dedication to you is to find exactly what you are looking, in both quality and price.
In today's global market, our experience in buying and selling equipment world wide can provide our customers a broad spectrum of services. These services not only include sales, but also dismantling, removal, packing, refurbishing and installation. We pride ourselves on details from equipment being complete and in good operating condition to proper loading and bracing to insure delivery in the same condition.

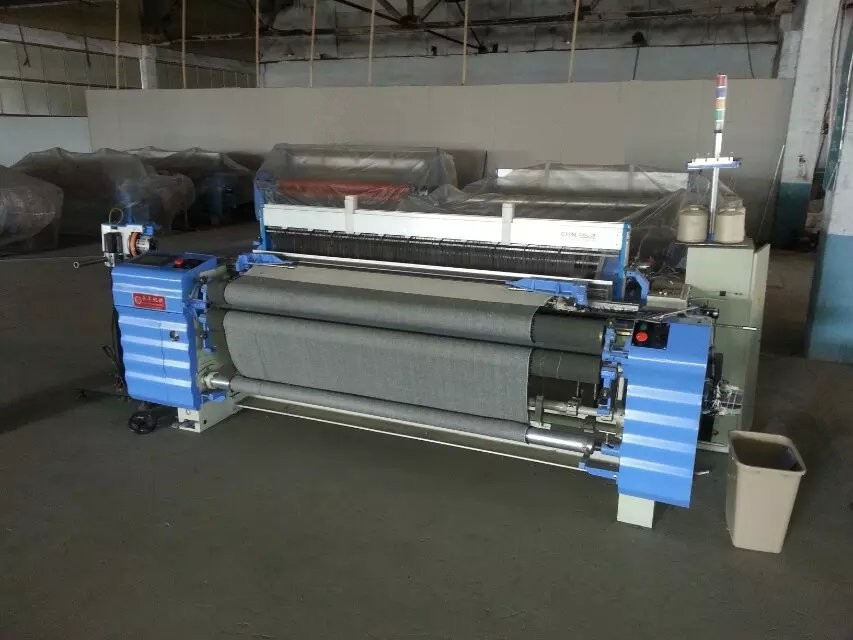

Air Jet Cotton Fabric Textile Weaving Machine
Type: Air Jet Loom
Model NO.: JLH 9200
Voltage: 380V
Precision: High Precision
Reed Width: 150-360cm
Cloth Roller: Normal/Jumbo Package
Nozzle: 2/4/6
Weft Insertion: Set Weft Storage, Main Nozzle, Any Weft
Transport Package: Export Standard Package
Computerized: Computerized
Certification: CE, ISO9001: 2000
Customized: Customized
Speed: 850~1000 r.p.m.
Tatham Woollen Card
Tatham Card

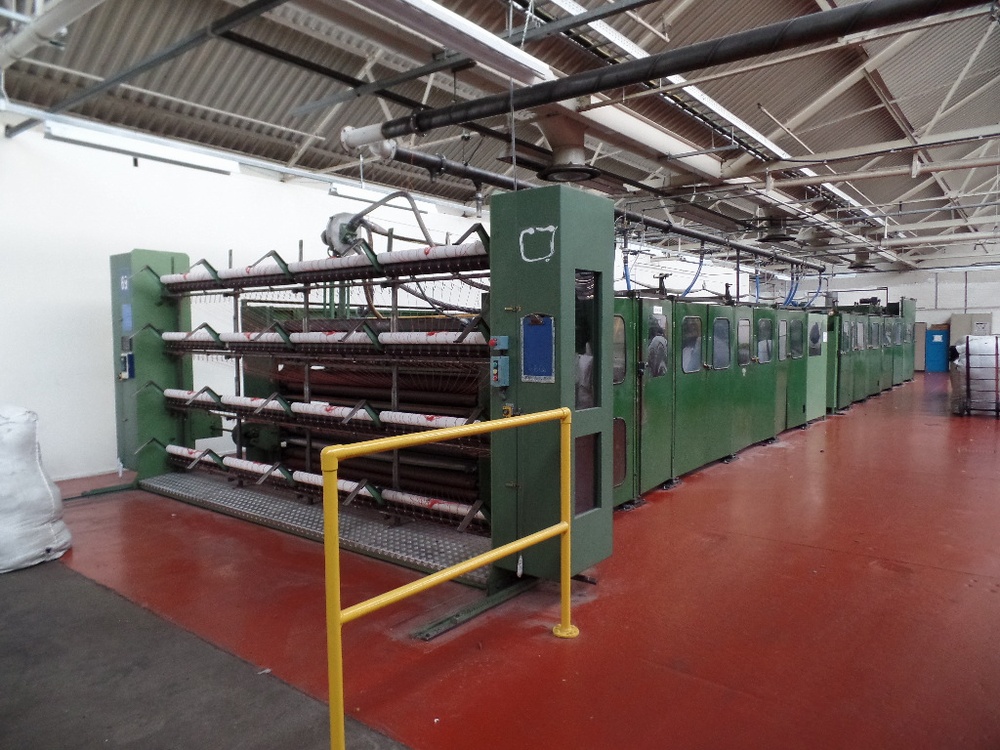

2 of HDB Woollen Spinning Frames
Machine Numbers J5421 / K5422
192 – Spindles each (single sided)
120mm – Pitch
90mm – Ring
400mm – tube
1020mm – Condensor bobbin (11 ends)
Self threading twist tubes
ABB Drive
BAWCO Transformer input 415v output 380v 97KA 135A

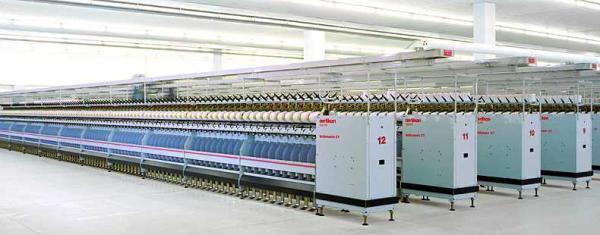

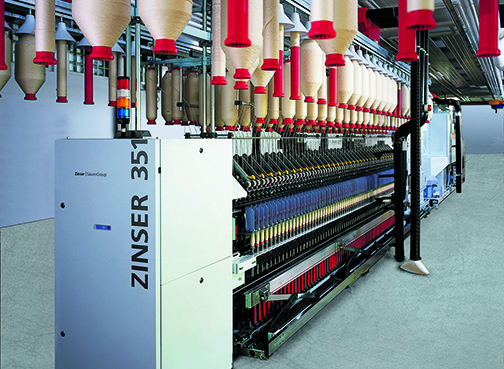

Zinser - 351
The best of ring spinning technology for cotton spinning.
Technical Details:
Spindle gauge: 70/ 75/ 82.5 mm
Tube length: 200 - 260 mm
Ring diameter: 38 - 57 mm
Max. spindle speed: 25000 rpm
Raw material: Cotton, viscose, man - made fibres and their blends
Application: 60 mm
Key Features:
Servo draft - no change gears for changing draft and twist
Synchro drive - multi-motor single tangential belt drive
Auto-doffing CoWeMat 395 V with linked system
Most reliable and flexible compact yarn attachment
Key Benefits:
Less stoppage time
Efficient, user friendly, easy to maintain and flexible
Reduces noise level, twist variation in yarn and power consumption
Reduces doffing time and material handling while increasing efficiency
Suitable for all counts
Zinserspeed 51M
The roving frame with state-of-the-art auto doffing for high productivity and unmatched roving quality.
Technical Details:
Flyer speed - 1500 rpm
Gauge - 220 mm and 260mm
Flyer size - 16' x 6 for 220 mm and 260 mm gauge
Flyer size - 16' x 7" for 260 mm gauge
Number of spindles up to - 192 for 260 mm gauge
Number of spindles up to - 208 for 220 mm guge
Application Range:
Staple fibers up to 63 mm
Count range ne 0.3 to ne 3.0
Draft range 3.0-15.8
Key Features:
Requires less floor space
In built power failure bridging device
excellent ergonomic profile
frequency invertor controlled suction motor
Key Benefits:
Superb roving quality
wide application range from fine to coarse counts
Reduction of power consumption
short set-up and servicing times

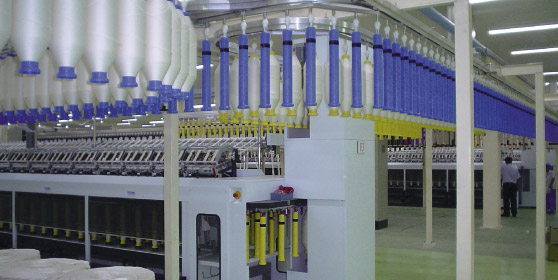

Bobbin Transport System
Technical Details:
Fully flexible system with limitless options
Bobbins move in loops with designated S/F & R/Fs
Full batch creeling of R/F possible with this system
Heavy duty bearing assembly & track changer switches
Key Features:
Most user-friendly motorised systems with extra large storage
Systems with very low maintenance cost
Heavy duty geared motor with fire protection
Integrations with bobbin stripper possible on request
Elimination of manual bobbin handling
Modular design to suit all requirements
Heavy duty bearing assembly & track changer switches
Storage parking with overhead traveling cleaners
Can be integrated with latest S/Fs with auto doffers at extra cost
Key Benefits:
Saves considerable manpower and time
Space saving
Possible to integrate new as well as old installations
Full batch creeling of ringframe possible
Integration with bobbin stripper possible

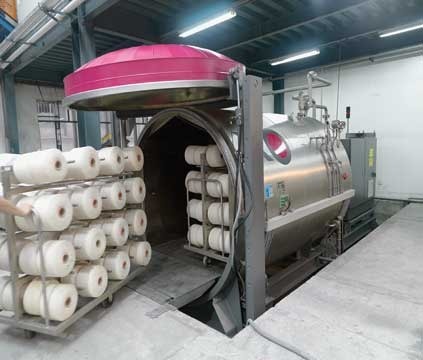

XO Smart
Vaccum conditioning and heat setting machine
Application Range:
Cotton blends in short staple spinning. Application in filament and glass fibres Used for fabric conditions and print setting acrylic bulking and pre shrinking
Technical Details:
Standard machines suitable for all low temperature treatment applications up to 95°C, available in three sizes
30% less connected load
Virtually maintenance free
100% process reproducibility
Plug & Steam designed
Key Features:
Unique XO Steaming system which uses 100% saturated steam and renowned XO-Intermediate
Vaccum procedureVessel made of stainless steel
Shortest delivery time
Key Benefits:
Lowest energy consumption and highest degree of Penetration with best relaxing and conditioning results

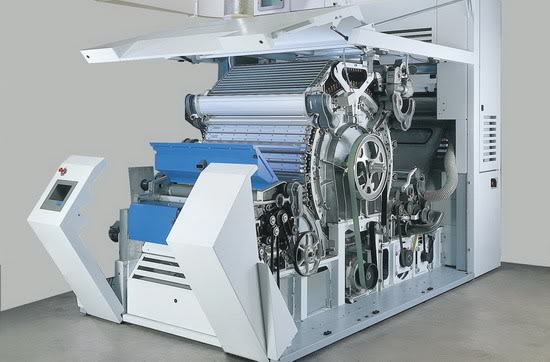

Card - TC 5-1/ TC 5-3
High production card designed to deliver superior performance with a comprehensive carding concept – available in two variants TC 5-1 and TC 5-3.
Technical Details:
Power consumption: 14.63 kW
Production: Upto 120 kg/ hr
Key Features:
Precision knife setting system PMS
Multi web clean
Direct feed
Touch screen
Raw Material:
Cotton and man-made fibres
Key Benefits:
Long carding area resulting in superior sliver quality
Less maintenance
Flexible adaptation to any material
Increase in production

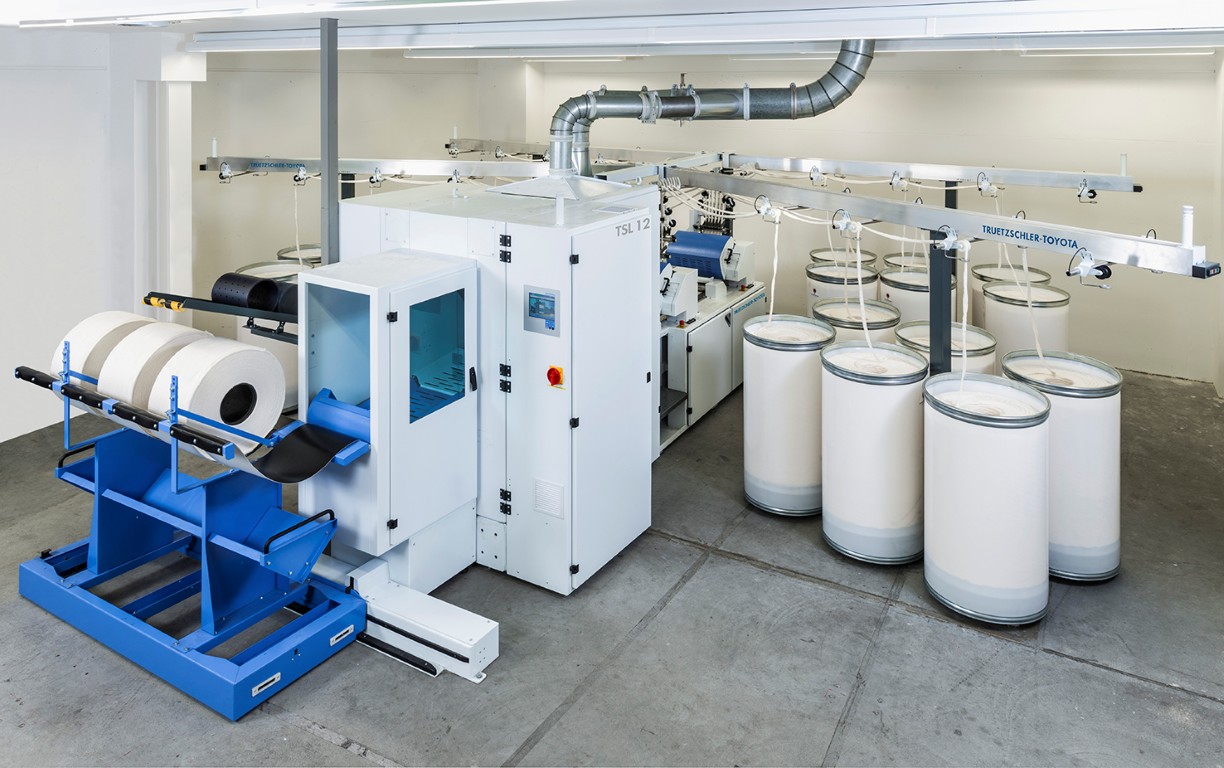

Draw frame TD - 7
Technical Details:
4-over-3 drafting system geometry
Pneumatically loaded top rolls
Pneumatic web threading
Key Features:
Pressure bar in main draft area
Perfect continuous suction with low, energysaving
Key Benefits:
Less maintenance
Digitally controlled

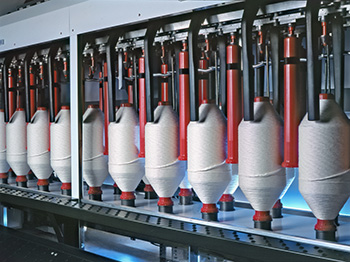

Compact Twister - VTS - 07
High performance twisting machine with a multitude of functional options for all spun yarns.
Technical Details:
Spindle gauge: 222.5/ 247.5/ 296 mm
Winding traverse: 152 - 254 mm
Max. no. of spidles: 256
Max. feed package diameter: 175 mm
Key Features:
Narrow width machine
Universal spindle with less height
Volcojet (pneumatic threading)
Pneumatic cradle lifting
Yarn blocking system
Raw Material:
Cotton, polyester, viscose and their blends
Key Benefits:
Space saving
Low yarn tension, less power consumption and high quality of twisted yarn
Easy to operate and maintain, saves time, keeps yarn path free from fluff and dust accumulation and higher productivity
In case of end breaks, prevents rubbing of package against drum
Prevents end breaks during power failure
Bale Plucker Blendomat - BO-A
The most flexible automatic bale plucker for uniform opening and feeding to other blowroom machines.
Technical Details:
Power consumption: 12.6 kW
Production: Upto 1600 kg/ hr
Length of machine: Min - 23.13 m; Max - 50.27 m
Key Features:
Upto three bale groups at a time
Feeding in upto three lines
Upto 180 bales
Raw Material:
Cotton, viscose, rayon, man-made fibres and their blends
Key Benefits:
Reduction in labour cost
Gentle and uniform opening
Small tuft size
Uncompromising safety
